insert ve tutucu

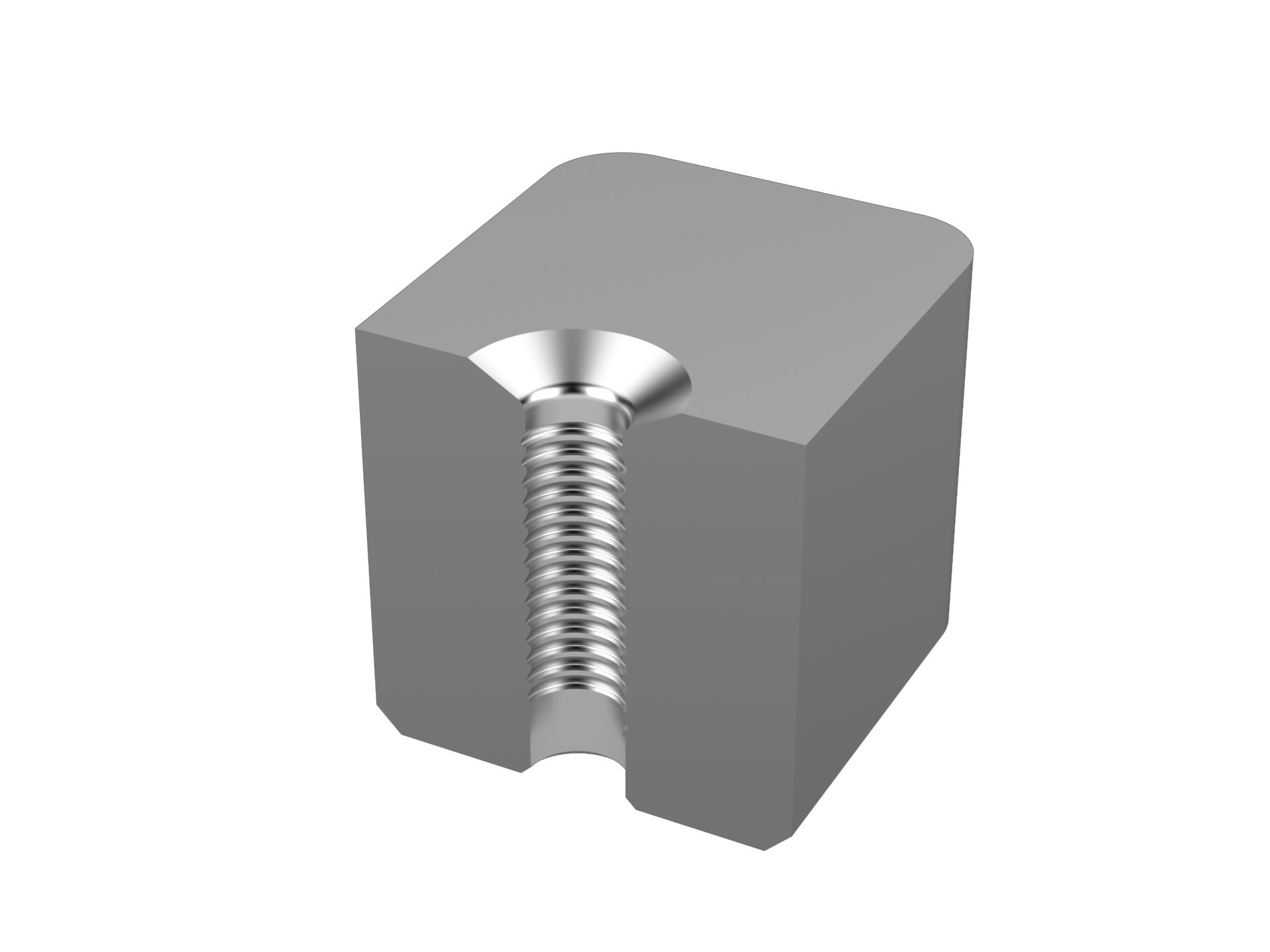

NAIL HEAD MATRIS 2 2

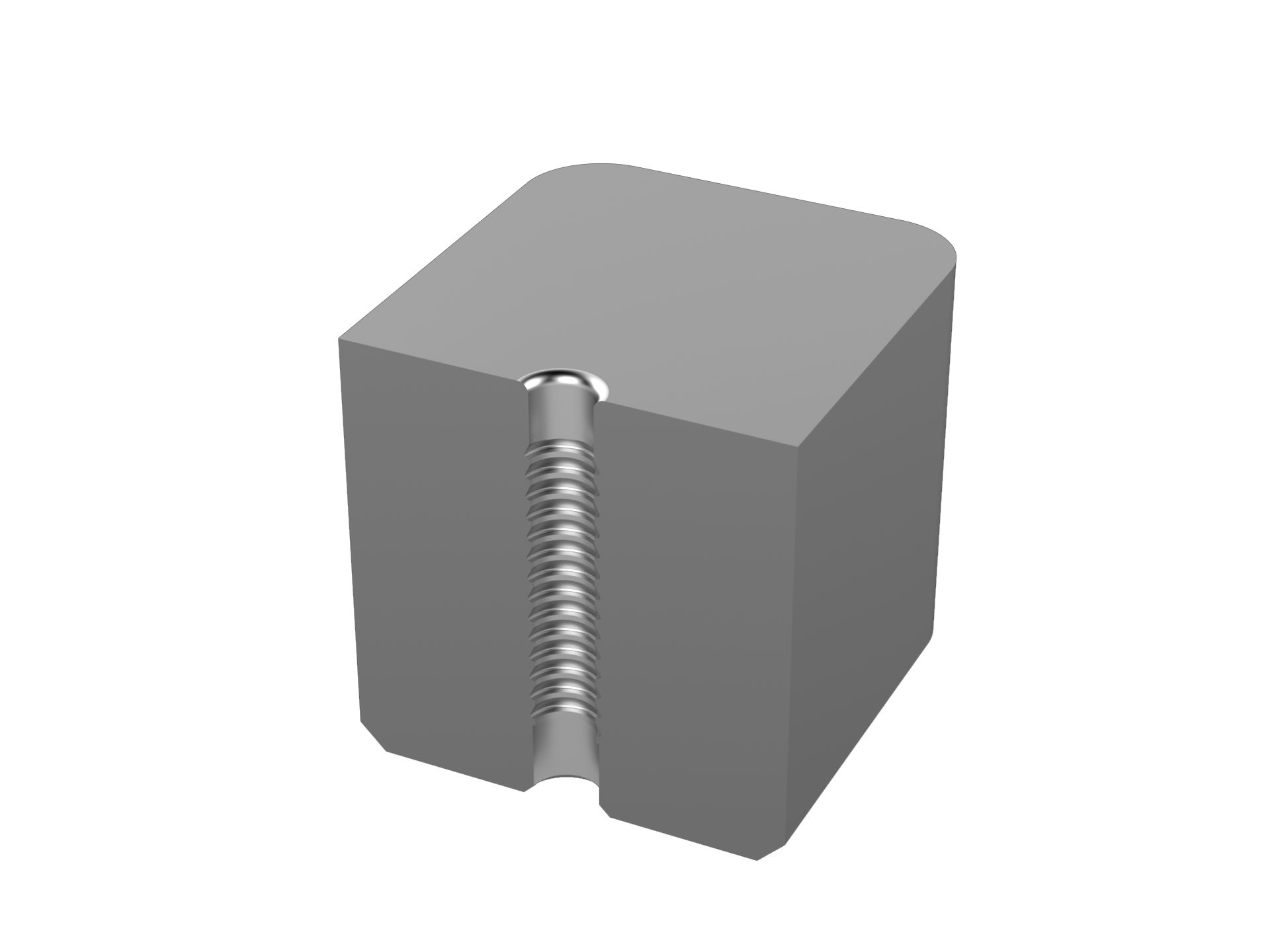

NORMAL HEAD MATRIS 2 2

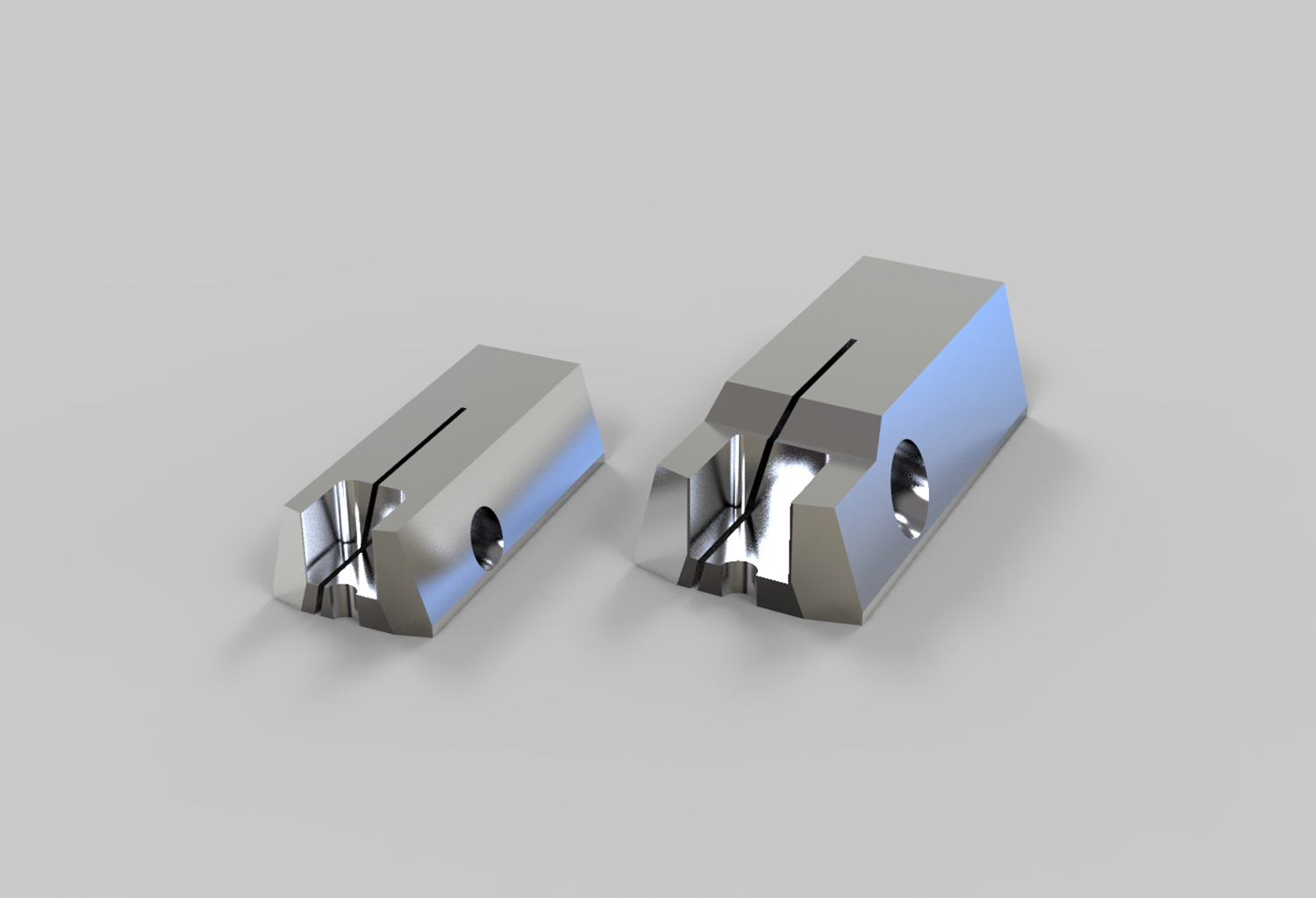

matris tutucu

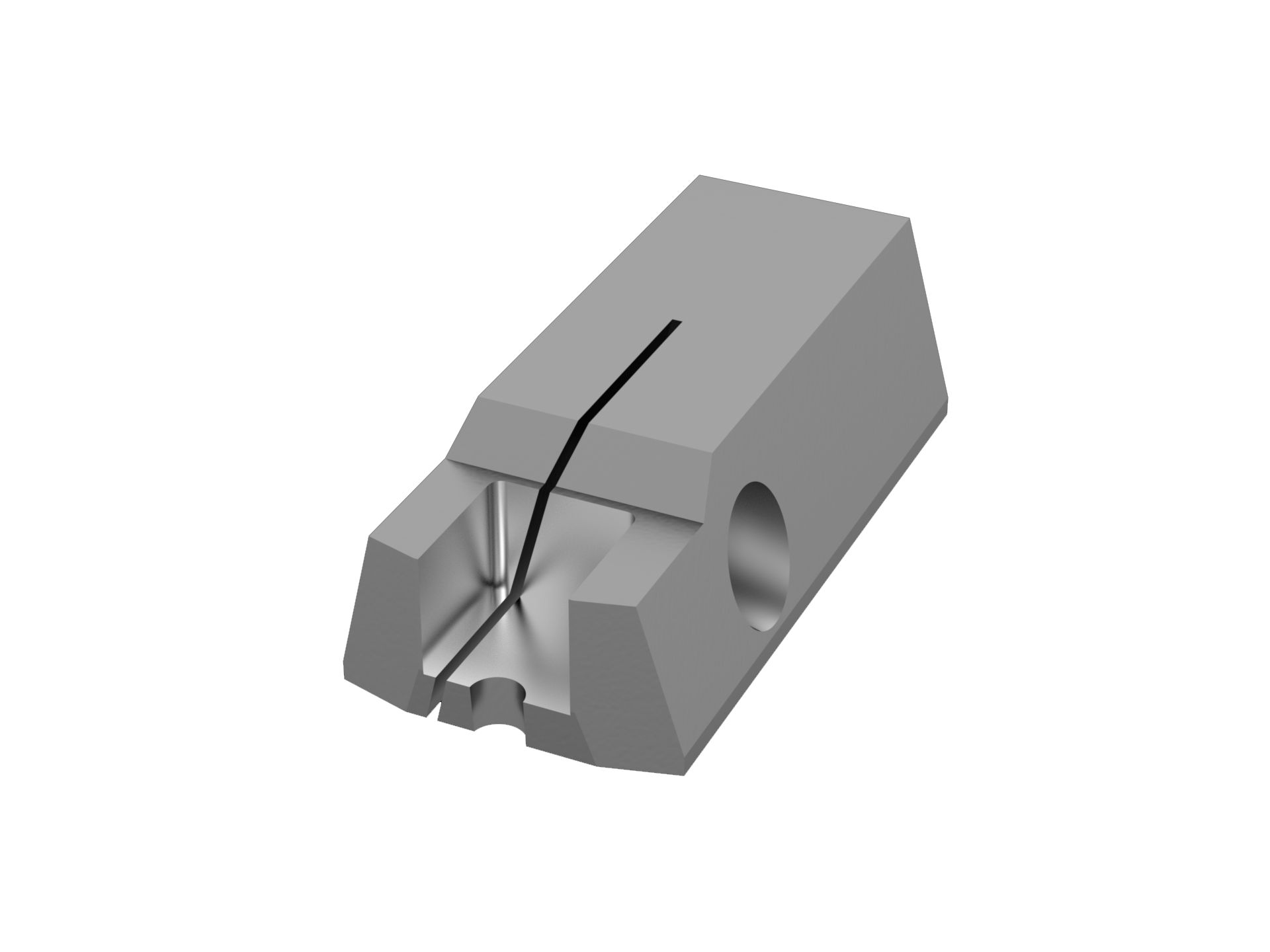

MATRIS TUTUCU N90A 2 2

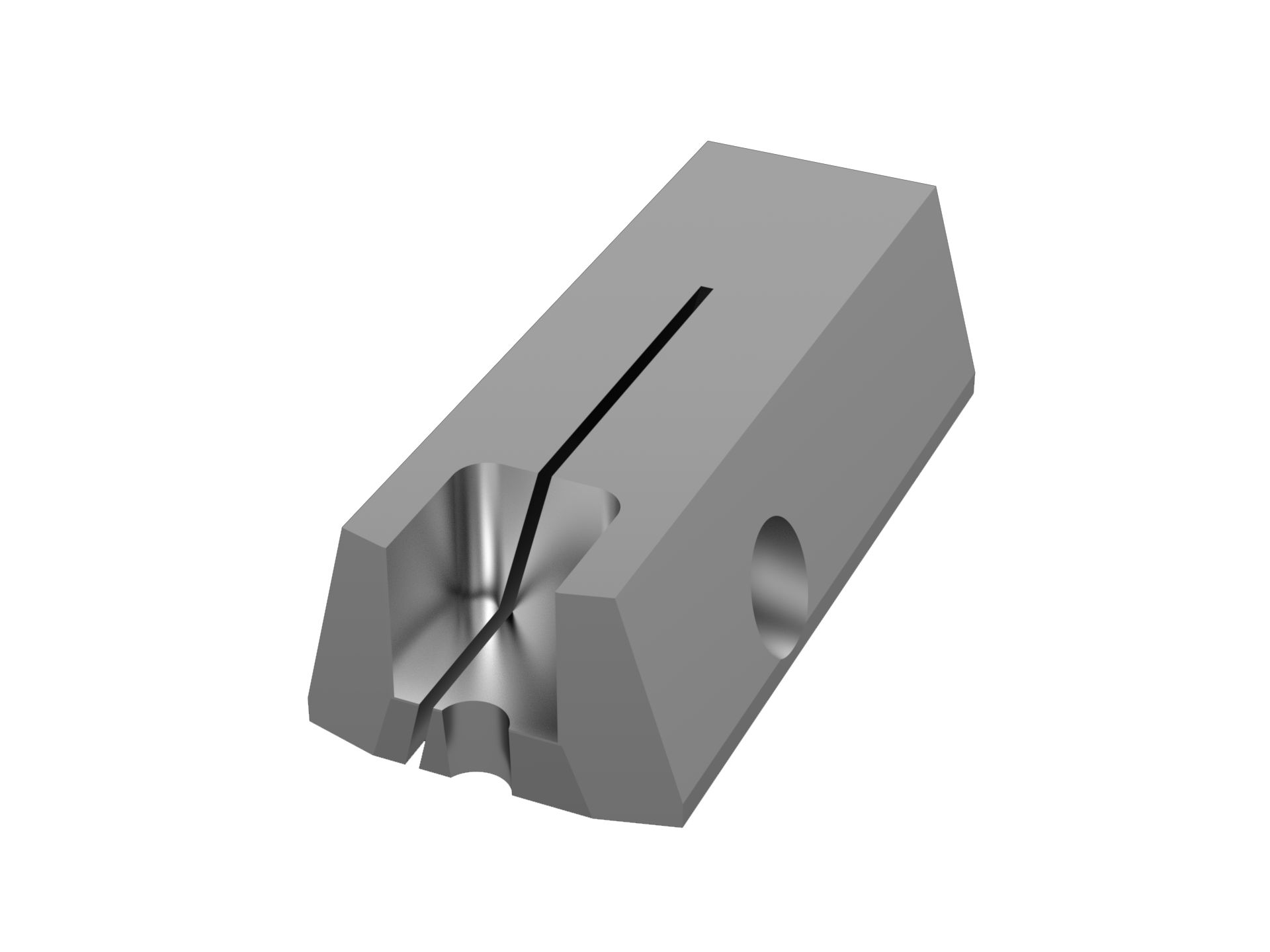

MATRIS TUTUCU N90 2 2
UC YUZEYLI MATRIS 1 2 2

İnsert ve Tutucu

Ürün Sorumlusu E-Mail: koray@cevizpres.com

insert 2
MATRIS FOR WAFIOS MACHINES
CODE S S H
WNM-01 12 12 12
WNM-02 16,5 16,5 16,5
WNM-03 20 20 16,5
WNM-04 16,5 16,5 20
WNM-05 16,5 16,5 14
WNM-06 20 20 20
WNM-07 16,5 16,5 11
insert 2 1
1
Head Type
keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
tutucu
MATRIS HOLDERS FOR WAFIOS MACHINES
CODE B H L1 L2 INSERT SIZE (a x b x c)
WNH-M01 28 18 62 70 12x12x12
WNH-M02 28 18 74 74 12x12x12
WNH-M03 40 25 80 95 16,5x16,5x16,5
WNH-M04 40 25 80 80 16,5x16,5x16,5
WNH-M05 40 35 80 80 16,5x16,5x20
WNH-M06 40 25 80 80 16,5x16,5x11
WNH-M07 40 25 80 80 16,5x16,5x14
WNH-M08 45 30 105 120 16,5x16,5x16,5
WNH-M09 45 30 105 120 20x20x16,5
WNH-M10 45 30 115 134 16,5x16,5x16,5
WNH-M11 45 30 115 134 20x20x16,5
WNH-M12 40 25 80 80 16,5x16,5x16,5
WNH-M13 55 36 140 160 16,5x16,5x16,5
WNH-M14 25 16 62 70 12x12x12
WNH-M15 18 12,5 62 70 12x12x12
WNH-M16 22 14 55 65 12x12x12
WNH-M17 25 16 60 75 12x12x12
WNH-M18 40 25 73 95 16,5x16,5x16,5
WNH-M19 32 20 72 95 12x12x12
WNH-M20 40 25 95 120 16,5x16,5x16,5
WNH-M21 40 25 110 135 16,5x16,5x16,5
WNH-M22 56 36 145 180 16,5x16,5x20
WNH-M23 60 40 170 200 16,5x16,5x20
WNH-M24 25 16 60 68 12x12x12
WNH-M25 60 40 170 210 16,5x16,5x20
1
Out Of Standards
